Texa Navigator Nano S

Navigator Nano S is the most advanced wireless device for cars and light commercial vehicles fitted with OBD sockets. The advanced miniaturisation techniques used have allowed TEXA to reduce the tool size and weight by more than 85%, compared with a traditional solution, whilst leaving depth of the diagnosis potential unchanged.

The Navigator Nano S belongs to a new generation of devices characterised by three key elements:

Reduced dimensions: increased practicality due to reduced size and ergonomic form, the Navigator nano plugs directly into the 16 pin diagnosis socket
Wireless: providing Bluetooth communication to the Handheld or PC display with power from the diagnostic socket, the technician can work freely around the vehicle
Self-diagnosis for cars and light commercials: the TEXA IDC4 operating software provides diagnosis software and information for a comprehensive range of vehicles and systems

The Navigator nano has been developed according to the TEXA philosophy of two-unit diagnosis, to provide practical and versatile solutions, and can be used with a range of TEXA display units including AXONE 4 & AXONE MINI. These characteristics allow the technician to gain the maximum benefit from their diagnostic tools, reducing the time required to complete the repair process.

The Navigator nano operates in conjunction with IDC4 software, the TEXA operating platform that combines diagnosis potential with a database of supporting information. The technician in fact has a whole range of additional information at his disposal, such as wiring diagrams, technical data sheets, component sheets and bulletins, specifying the correct procedures to assist in repair the most common failures.

If the workshop has an internet connection, it can access the "Solved problems" search functions powered by Google and the TGS2 vehicle system scan.

Purchase Options

The Texa Navigator Nano S can be purchased on the following pages:

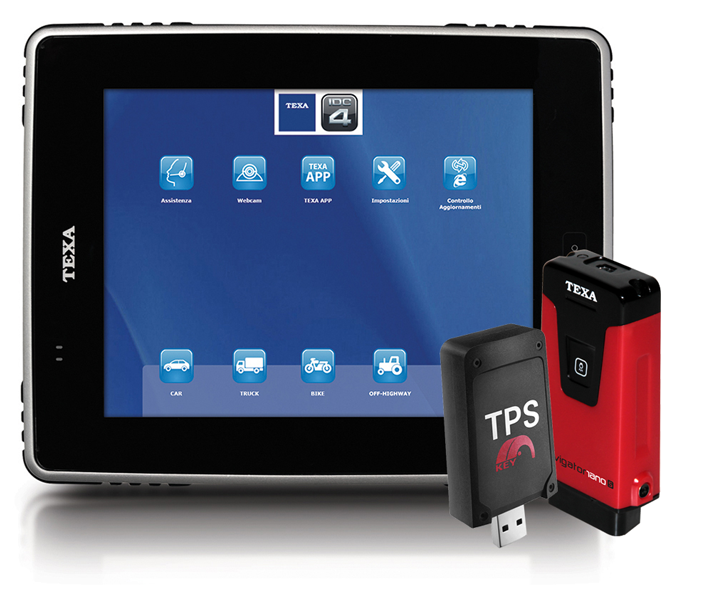

Car & Light Commercial Premium Package

Technical Specification

Processor	CORTEX M3 STM32F103 72MHz
Memory	External SRAM: 8 MBit organised in 512 K x 16 bit External NAND flash memory: 2 Gbit on 8 bit bus
Internal Battery	Lithium polymer, single cell, 3.7 V 250 mA/h
Vehicle Electrics	12 VDC vehicle systems
External Power Supply	8 ÷ 16 V
Wired Connection	Virtual RS232 via USB 2.0 device
Wireless Connection	Bluetooth Class1
Electronic Switching	2 way, 13 independent positions
Diagnostics Connector	OBD
Operating temperature	0 ÷ 50 °C
Storage temperature	-20 ÷ 60 °C
Operating relative humidity	10% ÷ 80% non-condensing
Dimensions	51x23x100 mm
Weight	72 g
Protocols Supported	Blink codes, K, L (with 60mA current protection) ISO 9141-2, ISO 14230, CAN ISO 11898-2, CAN ISO 11898-3, SAE J1850 PWM and VPW
Standards	Directive: 1999/5/EC Safety: EN 60950-1 Electromagnetic Compatibility: EN 301 489-1, EN 301 489-17 Radio systems: EN 300 328-2

Texa Laser Examiner

The Laser Examiner is a small practical tool to objectively measure brake disk wear with an accuracy of a tenth of a millimetre without having to remove the wheel from the vehicle. You can also measure tire tread wear using a simple adapter.

This tool integrates perfectly with the Nano.

For more details, visit the Texa Laser Examiner page.
