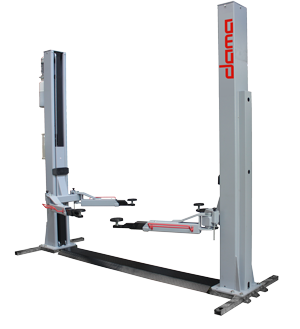

Dama HDM4.0T/3SF 2 Post Lift
Dama HDM4.0T/3SF 2 Post Lift
An ideal service lift with a lifting capacity of 4 tonnes, able to be installed on variable surfaces and an improved flexibility to maximum the range of vehicles able to be lifted.
This version of the very popular 4t range is ideal where the garage floor is has some variation in level, finish, condition or where strength of the concrete is not ideal. The H frame secures the lift onto a rigid frame with side supports to ensure optimum operation and security.
In addition this lift offers a much improved flexibility on lifting points, having symmetric 3 stage extending arms on both front and rear they can be adjusted from as little as 700mm to a long 1300mm. This improved flexibility enables all types of vehicles to be lifted with ease.
Price includes delivery and installation.
Features
- H base for better adaptation to all types of floors
- Parking function for durability of components
- 2 cylinder
- Chain driven
- Synchronization steel cable
- Electric lock release
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting Time | 60 seconds |
| Lowering Time | 18 - 40 seconds |
| Net Weight | 790Kg |
| Warranty | 24 Months |

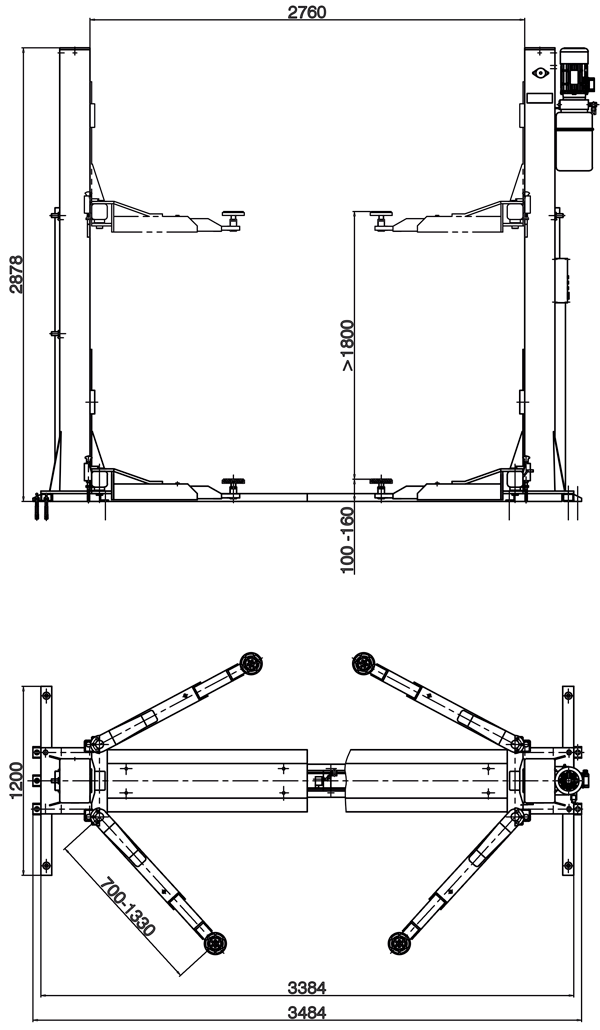

Drawings
