Waeco ASC5500RPA R1234yf Air Con Station

Extended Warranty Waeco ASC5500RPA R1234yf Air Con Station
Only £4995.00 + VAT
P/No. : asc5500rpa
QTY :

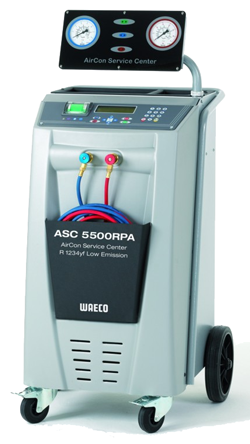

Waeco ASC5500RPA Low Emission R1234yf Air Con Station

Low Emission Service Unit for R 1234YF With Integrated Gas Identifier

They may be only a few, but they are there – the first new vehicle models with A/C systems prepared for the use of R 1234yf refrigerant. Brand-bound motor garages, in particular, are obliged to get prepared for servicing these systems. Against this backdrop WAECO’s AirCon professionals have designed, in close cooperation with the automotive industry, the ASC5500RPA service unit.

As R 1234yf is very sensitive to contamination with other refrigerants, the ASC5500RPA was fitted with an integrated analysis tool that checks the refrigerant purity. Designed inside out for use with R 1234yf refrigerant, the ASC5500RPA meets fire regulations and offers all the benefits known from the “classic” models in the ASC series.

Extra Safety

The service unit comes with integrated refrigerant analysis function. Explosion protection: hazard analysis performed by an independent test institute.

Automatic, Regular Leak Check

Service couplers with clearance ventilation prevent refrigerant leakage.

Switch-on Delay and External Ventilation

R 1234yf is flammable under certain conditions. Therefore, the system start will on activate the external fan. After the fan has been running for 35 seconds, the voltage is passed on to the system.

Low-Emission Concept

Close to 100% refrigerant recovery.

Features

  • Sturdy metal housing
  • Charging cylinder storage capacity: 16 kg, vacuum pump capacity: 5 cars/h
  • Optional: patented feeding system for fresh oil and UV additive
  • Integrated fully automatic refrigerant analysis function
  • Fully automatic refrigerant recycling, oil and additive management
  • Automatic vacuum check
  • Automatic leak check prior to service start
  • Automatic charging of leak detection additive
  • Integrated refrigerant charging and recovery amount management
  • Integrated charging amount database
  • Complies with SAE J 2099, 2788 and 2843
  • Close to 100% refrigerant recovery
  • Personalised charging amount database
  • Operator guidance via large display
  • Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
  • Special, 8-bearing weighing platform
  • Special air conditioner flush function
  • Large recessed tray for tools
  • Also suitable for German-make hybrid vehicles
  • Patented used oil container
  • Including adapter for non-returnable bottles 1/4" HD

Technical Specification

Power Supply

220/240 V – 50/60 Hz *

Suitable for refrigerant

R 1234yf

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

30

Vacuum pump capacity

5 cars/h

Performance of the hermetic compressor in kW

0,32

Dry filter capacity in kg

150

Refrigerant recycling rate

Close to 100 %

Can be used as diagnosis tool

yes

Charging cylinder/useful capacity (kg)

15

Charging amount indicated by

Display

Refrigerant analysis

integrated / automatic

Recovery/recycling

automatic

Purging of non-condensable gases

automatic / electronic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

no

Injection of leak detection additive

automatic

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

yes

USB connection for software- and database updates

no

Printer

yes

Service hoses (SAE standard), 3 m

yes

Service hoses (SAE standard), 8 m

no

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

yes

Used oil container (500 ml)

yes

Hermetically closed used oil container

no

Heated refrigerant tank / fluid pump (F)

yes / no

Dust cover

yes

Goggles / safety gloves

yes

Test bottles UV additive for approx. 10 applications

no

Bottle of fresh PAG oil ISO 46, 500 ml

no

Bottle of fresh PAG oil ISO 100, 500 ml

no

Bottle of fresh POE oil SE 55, 500 ml

no

Bottle of fresh PAG oil ND 12, 100 ml

yes

Dimensions (W x H x D, in mm)

560 x 1300 x 650

Weight (kg)

110
