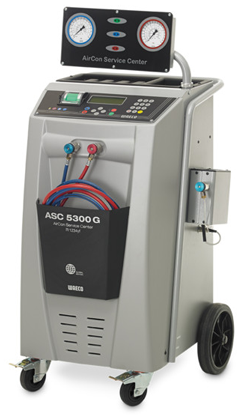

Waeco ASC5300G R1234YF Air Con Station

Extended Warranty Waeco ASC5300G R1234YF Air Con Station
Only £3745.00 + VAT
P/No. : asc5300g
QTY :

Waeco ASC5300G R1234YF Air Con Station

Service Unit for R 1234YF with Optional Gas Analyser

Are you in the market for an A/C service unit for the new R 1234yf refrigerant? Do you want one from a renowned manufacturer without spending more money than necessary? Then the ASC5300G could be just the right thing for you. The unit integrates a wealth of WAECO know-how and experience. Professional A/C service work is performed fully automatically, with little operator effort.

All standard ASC-series features are provided, including refrigerant charging and recovery management, personalised charging amount database and automatic vacuum check. The ASC5300G can be added with an external refrigerant analysis tool.

Air Flow

Controlled air flow and a high-performance fan with special electronics guarantee adequate ventilation.

Personalised Charging Amount Database

ASC-series units give you the option to create a personalised charging amount database for 100 different vehicles.

Soft Graphic Display

The soft graphic display can also display special characters such as Cyrillic or Chinese script.

USB Interface

Via the USB port you can simply update the software of the service unit. Or export important data to a USB stick for further processing on a laptop or PC.

Features

  • Sturdy metal housing
  • Charging cylinder storage capacity: 16 kg, vacuum pump capacity: 5 cars/h
  • Humidity free storage and feeding system for fresh oil and UV additive
  • Print-out of important service data, several print-outs possible
  • Fully automatic refrigerant recycling, oil and additive management
  • Automatic vacuum check
  • Automatic charging of leak detection additive
  • Integrated refrigerant charging and recovery amount management
  • Integrated charging amount database
  • Complies with SAE J 2099, 2788 and 2843
  • Personalised charging amount database
  • Operator guidance via large display
  • Swivel and tilt manometer panel (patented)
  • Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
  • Special, 8-bearing weighing platform
  • Special air conditioner flush function
  • 500 ml used oil container for longer change intervals
  • Large recessed tray for tools
  • Also suitable for hybrid vehicles
  • USB interface
  • Soft graphic display
  • Including adapter for refrigerant bottles
  • Optional: prepared for refrigerant purity analysis tool; easy retrofitting – plug & play

Technical Specification

Power Supply

220/240 V – 50/60 Hz

Suitable for refrigerant

R 1234yf

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

30

Vacuum pump capacity

5 cars/h

Performance of the hermetic compressor in kW

0.32

Dry filter capacity in kg

150

Refrigerant recycling rate

min. 95 %

Can be used as diagnosis tool

no

Charging cylinder/useful capacity (kg)

15

Charging amount indicated by

Display

Refrigerant analysis

extern / optional

Recovery/recycling

automatic

Purging of non-condensable gases

automatic / electronic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

no

Injection of leak detection additive

automatic

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

yes

USB connection for software- and database updates

yes

Printer

yes

Service hoses (SAE standard), 3 m

yes

Service hoses (SAE standard), 8 m

no

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

yes

Used oil container

yes

Hermetically closed used oil container

no

Heated refrigerant tank / fluid pump

yes / no

Dust cover

yes

Goggles / safety gloves

yes

Test bottles UV additive, 100 ml

yes

Test bottle of double end capped PAG oil for R 1234yf, 100 ml

yes

Dimensions (W x H x D, in mm)

560 x 1300 x 650

Weight (kg)

100
