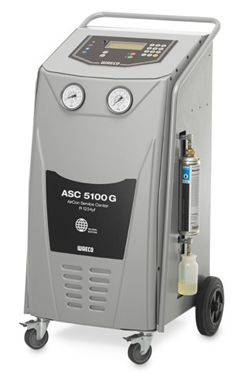

Waeco ASC5100G R1234YF Air Con Station

Extended Warranty Waeco ASC5100G R1234YF Air Con Station
Only £2645.00 + VAT
P/No. : asc5100g
QTY :

Waeco ASC5100G R1234YF Air Con Station

Service Unit for R1234YF - Entry Level Model with Upgrading Options

Are you just starting to provide A/C service on R 1234yf air conditioners, with only a few service orders per month? Here is a low-cost service unit that gives you all the features required for safe work with the new refrigerant: e.g. two fans on the front and rear of the unit for the mandatory forced ventilation. The new ASC5100G performs all service processes automatically achieving a refrigerant recycling rate of at least 95 %. The purity of the recovered refrigerant complies with the SAE J 2099 standard.

Expecting more orders in the future? You can easily upgrade your entry-level service unit at a later date – e.g. with a heating belt for the charging cylinder. A USB port and a soft graphic display that can also display special characters are already included.

Soft Graphic Display

The soft graphic display can also display special characters such as Cyrillic or Chinese script.

USB Interface

Via the USB port you can simply update the software of the service unit. Or export important data to a USB stick for further processing on a laptop or PC.

Complies with SAE J 2099

The purity of the recovered refrigerant complies with the SAE J 2099 standard.

Upgrading Options

The ASC5100G can be upgraded with a heating belt for the charging cylinder. The unit is also prepared for the humidity free storage and feeding system for fresh oil and UV additive.

Features

  • Charging cylinder storage capacity: 9 kg
  • Automatic refrigerant recycling, oil or UV additive management controlled by load cell
  • Purity of recovered refrigerant according to SAE J 2099
  • Refrigerant recycling rate: at least 95 %
  • Forced ventilation with two fans at the front and rear
  • Soft graphic display – can also display special characters
  • USB interface
  • Heavy-duty load cell, no transport lock necessary
  • 3 m service hoses
  • Optional: dust cover
  • Optional: humidity free storage and feeding system for fresh oil and UV additive
  • Optional: heating belt for the charging cylinder

Technical Specification

Power Supply

220/240 V – 50/60 Hz

Suitable for refrigerant

R 1234yf

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

30

Vacuum pump capacity

5 cars/h

Performance of the hermetic compressor in kW

0.32

Dry filter capacity in kg

150

Refrigerant recycling rate

min. 95 %

Can be used as diagnosis tool

no

Charging cylinder/useful capacity (kg)

9

Charging amount indicated by

Display

Refrigerant analysis

no

Recovery/recycling

automatic

Purging of non-condensable gases

automatic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

no

Injection of leak detection additive

no

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

no

USB connection for software- and database updates

yes

Printer

no

Service hoses (SAE standard), 3 m

yes

Service hoses (SAE standard), 8 m

no

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

no

Used oil container

yes

Hermetically closed used oil container

no

Heated refrigerant tank / fluid pump

optional / no

Dust cover

no

Goggles / safety gloves

yes

Test bottles UV additive, 100 ml

no

Test bottle of double end capped PAG oil for R 1234yf, 100 ml

no

Dimensions (W x H x D, in mm)

600 x 1040 x 600

Weight (kg)

90
