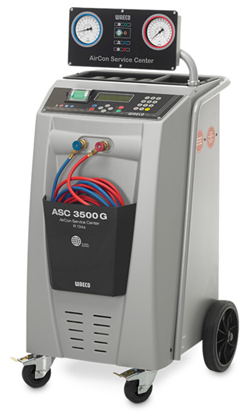

Waeco ASC3500G R134A Air Con Station

Extended Warranty Waeco ASC3500G Low Emission R134A Air Con Station
Only £5495.00 + VAT
P/No. : asc3500g
QTY :

Waeco ASC3500 G Low Emission R134A Air Con Station

Close to 100% Discharge in 4 Steps

Most A/C service units available in the market today are using three major process steps: refrigerant recovery via the compressor, evacuation of the refrigerant circuit via the vacuum pump, and refrigerant recharging. WAECO ASC Low Emission service units are using an additional process step to ensure that close to 100 % of the refrigerant can be recovered.

In this process step the vacuum pump teams up with the compressor to recover also the residual amount of refrigerant contained in the oil. This additional step – indicated by the orange ECO LED on the new operator display – gives two major advantages. First, there’s virtually no refrigerant lost or escaping into the environment. Second, the exact amount of the recovered refrigerant can be identified in the subsequent weighing. This avoids misinterpretation with regard to the tightness of the A/C system, which would otherwise lead to unnecessary troubleshooting and costly repairs.

The 4 steps of the WAECO Low Emission service process

STEP 1
Refrigerant recovery: The refrigerant is recovered from the vehicles A/C system with the help of the compressor of the A/C service unit.

STEP 2
Used oil drainage: The vacuum pump teams up with the compressor to recover also the residual amount of refrigerant contained in the oil, also during the drainage of the used oil. No refrigerant lost or escaping into the environment.

STEP 3
Vacuum phase: The vacuum pump is switched on automatically and ensures deep down evacuation of the A/C system. Since the vacuum pump is connected to the internal container of the Low Emission service unit, the refrigerant does not escape into the environment now, but is collected in the internal container.

STEP 4
Refrigerant recharging: The A/C system is charged with the vehicle-specific amount of refrigerant from the tank of the A/C service unit.

Profitable A/C Service on Large Vehicles

The new ASC3500G Low Emission A/C service unit offers all the benefits of the WAECO Low Emission technology: close to 100 % refrigerant recovery with our well proven four-step process, virtually zero harmful refrigerant emission into the atmosphere. Plus, not forgetting, an exact identification of the recovered amount of refrigerant, which avoids laborious (and unnecessary) troubleshooting and repairs.

Integrating a powerful vacuum pump with a flow rate of 192 litres per minute, the ASC3500G Low Emission qualifies for highly efficient A/C service on large vehicles, such as buses, trains and helicopters. This is where the WAECO Low Emission concept pays off in considerable savings, because the overall amount of refrigerant to be recovered per service run is much larger than with car A/C systems. An additional fluid pump ensures fast refrigerant recharging.

Individual User Code

To prevent unauthorised use of WAECO A/C service units, up to 10 user names can be programmed in combination with individual PIN codes.

Personalised Charging Amount Database

ASC-series units give you the option to create a personalised charging amount database for 100 different vehicles.

Low Emission

Virtually no refrigerant escaping into the environment and identification of the exact amount of the recovered refrigerant in the weighing procedure avoids unnecessary troubleshooting.

USB Interface

Via the USB port you can simply update the software of the service unit. Or export important data to a USB stick for further processing on a laptop or PC.

Features

  • Sturdy metal housing
  • Charging cylinder storage capacity: 26 kg, vacuum pump capacity 192 l/min
  • Performance of the hermetic compressor 0,6 kW
  • Humidity free storage and feeding system for fresh oil and UV additive including test bottles
  • Print-out of important service data, several print-outs possible
  • Fully automatic refrigerant recycling, oil and additive management
  • Automatic vacuum check
  • Automatic charging of leak detection additive
  • Integrated refrigerant charging and recovery amount management
  • Integrated charging amount database
  • Complies with SAE J 2099 and SAE J 2788
  • Close to 100 % refrigerant recovery
  • Virtually 0 % service emission thanks to patented used oil container and Low Emission concept
  • Personalised charging amount database
  • Operator guidance via large display
  • Swivel and tilt manometer panel (patented)
  • Swivel-mount display and information unit (patented)
  • Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
  • Special, 8-bearing weighing platform
  • Special air conditioner flush function
  • Large recessed tray for tools
  • Also suitable for hybrid vehicles if the optional flushing kit for the ASC’s internal circuit was installed
  • Service hoses 8 m
  • Patented used oil container
  • USB interface and soft graphic display

Technical Specification

Power Supply

220/240 V – 50/60 Hz

Suitable for refrigerant

R 134a

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

40

Vacuum pump capacity

192 l/min.

Performance of the hermetic compressor in kW

0.6

Dry filter capacity in kg

150

Refrigerant recycling rate

Close to 100 %

Can be used as diagnosis tool

yes

Charging cylinder/useful capacity (kg)

26

Charging amount indicated by

Display

Refrigerant analysis

no

Recovery/recycling

automatic

Purging of non-condensable gases

automatic / electronic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

no

Injection of leak detection additive

automatic

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

yes

USB connection for software- and database updates

yes

Printer

yes

Service hoses (SAE standard), 3 m

no

Service hoses (SAE standard), 8 m

yes

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

yes

Used oil container (500 ml)

no

Hermetically closed used oil container

yes

Heated refrigerant tank / fluid pump

yes / yes

Dust cover

yes

Goggles / safety gloves

yes

Test bottles UV additive for approx. 10 applications

no

Bottle of fresh PAG oil ISO 46, 500 ml

no

Bottle of fresh PAG oil ISO 100, 500 ml

no

Bottle of fresh POE oil SE 55, 500 ml

yes

Dimensions (W x H x D, in mm)

560 x 1300 x 650

Weight (kg)

110
