Waeco ASC3000G R134A Air Con Station

Extended Warranty Waeco ASC3000G R134A Air Con Station
Only £4995.00 + VAT
P/No. : asc3000g
QTY :

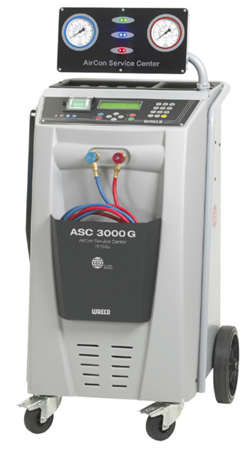

Waeco ASC3000G R134A Air Con Station

High-Volume Aircon Service Centre for Buses, Trains, Helicopters and Custom Applications

Time is valuable, especially when it comes to air conditioning service on large vehicles such as buses and trains where downtimes are extremely costly for the operators. Speed and reliability are vital. Key service tasks such as refrigerant recovery, evacuation and refrigerant recharging need to be performed within a tight timeframe. The ASC3000G perfectly meets these requirements. The 192-litre vacuum pump is exactly designed for bus applications. An additional fluid pump ensures fast refrigerant recharging.

Using the optional flush kit the A/C service unit can be cleaned inside after use to remove residual oil and UV additive and avoid cross contamination.

The following processes are performed fully automatically:

  • Refrigerant recovery and recycling
  • Residual pressure measurement
  • Used oil drainage
  • Evacuation
  • Leak check
  • Fresh oil and UV additive charging
  • Refrigerant charging with charging amount compensation of the service hoses

The ASC3000G optionally features the patented fresh oil and UV additive feeding system. It allows moisture-free and clean storage of refrigerant oils even over longer periods of time and thus cuts A/C service costs.

Individual User Code

To prevent unauthorised use of WAECO A/C service units, up to 10 user names can be programmed in combination with individual PIN codes.

Personalised Charging Amount Database

ASC-series units give you the option to create a personalised charging amount database for 100 different vehicles.

Simply Perfect

Easy-to-read manometer, patented feeding system for fresh oil. The unit is suitable for mobile use and complies with automotive manufacturers’ requirements.

USB Interface

Via the USB port you can simply update the software of the service unit. Or export important data to a USB stick for further processing on a laptop or PC.

Features

  • High capacity compressor
  • Large vacuum pump: 192 l/min
  • Integrated fluid pump for high-volume refrigerant charging
  • 2-stage vacuum pump designed in cooperation with utility vehicle manufacturers
  • Print-out of important service data, several print-outs possible
  • Optional: patented feeding system for fresh oil and UV additive
  • Dustcover included in the delivery kit
  • Fully automatic refrigerant recycling, oil and additive management
  • Automatic vacuum check and charging of leak detection additive
  • Complies with SAE J 2099 and SAE J 2788
  • Integrated refrigerant charging and recovery amount management
  • Integrated charging amount database
  • Personalized charging amount database
  • Operator guidance via large display and manometer, large recessed tray for tools
  • Swivel and tilt manometer panel (patented)
  • Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
  • Special, 8-bearing weighing platform
  • Special air conditioner flush function
  • 500 ml used oil container for longer change intervals
  • Service hoses 8 m
  • USB interface
  • Soft graphic display

Technical Specification

Power Supply

220/240 V – 50/60 Hz *

Suitable for refrigerant

R 134a

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

40

Vacuum pump capacity

192 l/min.

Performance of the hermetic compressor in kW

0,6

Dry filter capacity in kg

150

Refrigerant recycling rate

min. 95 %

Can be used as diagnosis tool

no

Charging cylinder/useful capacity (kg)

26

Charging amount indicated by

Display

Refrigerant analysis

no

Recovery/recycling

automatic

Purging of non-condensable gases

automatic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

no

Injection of leak detection additive

automatic

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

yes

USB connection for software- and database updates

yes

Printer

yes

Service hoses (SAE standard), 3 m

no

Service hoses (SAE standard), 8 m

yes

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

yes

Used oil container (500 ml)

yes

Hermetically closed used oil container

no

Heated refrigerant tank / fluid pump (F)

yes / F

Dust cover

yes

Goggles / safety gloves

yes

Test bottles UV additive for approx. 10 applications

no

Bottle of fresh PAG oil ISO 46, 500 ml

no

Bottle of fresh PAG oil ISO 100, 500 ml

no

Bottle of fresh POE oil SE 55, 500 ml

yes

Bottle of fresh PAG oil ND 12, 100 ml

no

Dimensions (W x H x D, in mm)

560 x 1300 x 650

Weight (kg)

110
