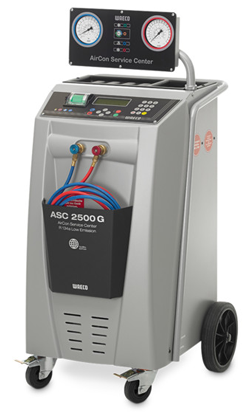

Waeco ASC2500G R134A Air Con Station

Extended Warranty Waeco ASC2500G R134A Air Conditioning Station
Only £3695.00 + VAT
P/No. : asc2500g
QTY :

Waeco ASC2500G Low Emission R134A Air Conditioning Station

The ASC2500G Low Emission integrates all refrigerant bearing components on the weighing platform. That means the complete amount of refrigerant contained in the unit can be recorded and the amount of the recovered refrigerant can be exactly determined. This in turn will tell the operator about potential leaks in the A/C system.

The accurate diagnosis function of the ASC2500G Low Emission is also very useful with regard to decreasing refrigerant charging amounts on modern-day vehicles. In the compact car segment we already see models with charging amounts of less than 300 g (e.g. Daihatsu Cuore). Older A/C service units won’t be able to charge these systems with the required accuracy. Excessive or insufficient charging would entail major problems.

Features

  • Sturdy metal housing
  • Charging cylinder storage capacity: 16 kg, vacuum pump capacity: 5 cars/h
  • Patented feeding system for fresh oil and UV additive including test bottles
  • Print-out of important service data, several print-outs possible
  • Fully automatic refrigerant recycling, oil and additive management
  • Automatic vacuum check
  • Automatic charging of leak detection additive
  • Integrated refrigerant charging and recovery amount management
  • Integrated charging amount database
  • Complies with SAE J 2099 and SAE J 2788
  • Close to 100% refrigerant recovery
  • Virtually 0% service emission thanks to patented used oil container
  • Personalised charging amount database
  • Operator guidance via large display and illuminated manometer
  • Swivel and tilt manometer panel (patented)
  • Swivel-mount display and information unit (patented)
  • Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
  • Special, 8-bearing weighing platform
  • Special air conditioner flush function
  • Large recessed tray for tools
  • Also suitable for German-make hybrid vehicles
  • Service on Asian-make hybrid vehicles is possible if the optional flushing kit for the ASC’s internal circuit was installed
  • Patented used oil container
  • USB interface
  • Soft graphic display

Individual User Code

To prevent unauthorised use of WAECO A/C service units, up to 10 user names can be programmed in combination with individual PIN codes.

Personalised Charging Amount Database

ASC-series units give you the option to create a personalised charging amount database for 100 different vehicle

Low Emission

Virtually no refrigerant escaping into the environment and identification of the exact amount of the recovered refigerant in the weighing procedure avoids unnecessary troubleshooting.

USB Interface

Via the USB port you can simply update the software of the service unit. Or export important data to a USB stick for further processing on a laptop or PC.

Technical Specification

Power Supply

220/240 V – 50/60 Hz *

Suitable for refrigerant

R 134a

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

30

Vacuum pump capacity

5 cars/h

Performance of the hermetic compressor in kW

0,32

Dry filter capacity in kg

150

Refrigerant recycling rate

Close to 100 %

Can be used as diagnosis tool

yes

Charging cylinder/useful capacity (kg)

15

Charging amount indicated by

Display

Refrigerant analysis

no

Recovery/recycling

automatic

Purging of non-condensable gases

automatic / electronic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

no

Injection of leak detection additive

automatic

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

yes

USB connection for software- and database updates

yes

Printer

yes

Service hoses (SAE standard), 3 m

yes

Service hoses (SAE standard), 8 m

no

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

yes

Used oil container (500 ml)

no

Hermetically closed used oil container

yes

Heated refrigerant tank / fluid pump (F)

yes / no

Dust cover

yes

Goggles / safety gloves

yes

Test bottles UV additive for approx. 10 applications

yes

Bottle of fresh PAG oil ISO 46, 500 ml

yes

Bottle of fresh PAG oil ISO 100, 500 ml

yes

Bottle of fresh POE oil SE 55, 500 ml

no

Bottle of fresh PAG oil ND 12, 100 ml

no

Dimensions (W x H x D, in mm)

560 x 1300 x 650

Weight (kg)

100

Environmentally Sound and Profitable

How does it manage to do so? Refrigerant loss mainly occurs in the phase when the refrigerator oil is forced out from the used oil container. The ASC 2500 G Low Emission uses a pressure-tight container. Moreover, the refrigerant escaping during used oil discharging is collected in the used oil container, recovered and returned to the refrigerant tank. The result is a refrigerant loss rate of close to zero percent! The accurate identification of the amount of recovered refrigerant also allows conclusions to be drawn about the tightness of the air conditioner (diagnosis tool).
