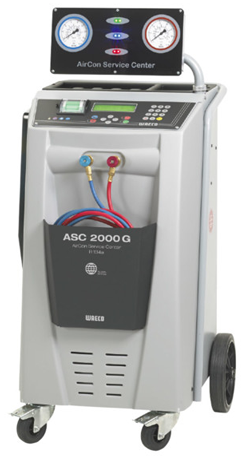

Waeco ASC2000RPA R134A Air Con Station

With Fully Automatic Refrigerant Analysis

The unnoticed presence of contaminated refrigerant in a vehicle A/C system or refrigerant bottle runs the risk of contaminating all the vehicles serviced afterwards. The workshop owner may face substantial damage claims as a result. A refrigerant analysis tool prevents the trouble.

RPA stands for Refrigerant Purity Analyser – a system which checks whether the vehicle A/C system and A/C service unit really contain pure R 134a and nothing else. Besides R 134a, the ASC2000RPA also recognises R 12, R 22, HC and air.

The most frequent reasons for refrigerants contamination are refrigerants imported from the Far East or the presence of air in the vehicle A/C system.

A vehicle A/C system can only operate successfully when filled with pure R 134a. Air entering the system means a serious problem. Possible consequences: Increased operating pressure and functional problems of the A/C system. Corrosion caused by the humidity admitted with the air. Substantial reduction of the refrigeration performance. Substantial strain on the compressor suction and pressure valves caused by increased pressure in the system.

Nitrogen Leak Check

In order to meet our commitment to protect our environment it is necessary to release as little refrigerant as possible into the atmosphere. In addition to the existing, fully automatic vacuum leak test function integrated in the service unit it is possible to admit nitrogen to the system. This method eliminates the drawback of leak tests solely by vacuum (components such as A/C tubes might contract and thus close a leak). Exposure to pressurised nitrogen during A/C service tells you immediately whether the system is tight. The test is carried out fully automatic by the ASC2000RPA.

Waeco ASC 2000RPA R134A Air Con Station

Features

  • Charging cylinder storage capacity: 21 kg, vacuum pump capacity: 5 cars/h
  • Patented feeding system for fresh oil and UV additive incl. test bottles
  • Print-out of important service data, several print-outs possible
  • Dust cover included
  • Fully automatic refrigerant recycling, oil and additive management
  • Automatic vacuum check
  • Automatic charging of leak detection additive
  • Integrated refrigerant charging and recovery amount management
  • Integrated charging amount database
  • Complies with SAE J 2099 and SAE J 2788
  • Personalised charging amount database
  • Operator guidance via large display and manometer
  • Swivel and tilt manometer panel (patented)
  • Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
  • Special, 8-bearing weighing platform
  • Special air conditioner flush function
  • 500 ml used oil container for longer change intervals
  • Also suitable for German-make hybrid vehicles
  • Suitable for Asian-make hybrid vehicles when optional flushing kit is installed
  • USB interface
  • Soft graphic display

Fully Automatic Testing of Refrigerant Purity

The ASC2000RPA A/C service unit ensures that the A/C system only contains pure R  134a, neither contaminated with banned refrigerants nor mixed with air.

Prior to the actual recycling process the service unit automatically removes and analyses a small refrigerant sample (9.5 g). The results are shown on the unit display. The operator receives a significant, qualified assessment of the refrigerant in the A/C system connected to the service station and can exactly determine what repairs or maintenance may be required.

If the refrigerant is fine, the ASC2000RPA continues its fully automatic programme.

Technical Specification

Power Supply

220/240 V – 50/60 Hz *

Suitable for refrigerant

R 134a

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

30

Vacuum pump capacity

5 cars/h

Performance of the hermetic compressor in kW

0,32

Dry filter capacity in kg

150

Refrigerant recycling rate

min. 95 %

Can be used as diagnosis tool

no

Charging cylinder/useful capacity (kg)

21

Charging amount indicated by

Display

Refrigerant analysis

automatic

Recovery/recycling

automatic

Purging of non-condensable gases

automatic / electronic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

automatic

Injection of leak detection additive

automatic

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

yes

USB connection for software- and database updates

no

Printer

yes

Service hoses (SAE standard), 3 m

yes

Service hoses (SAE standard), 8 m

no

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

yes

Used oil container (500 ml)

yes

Hermetically closed used oil container

no

Heated refrigerant tank / fluid pump (F)

yes / no

Dust cover

yes

Goggles / safety gloves

yes

Test bottles UV additive for approx. 10 applications

yes

Bottle of fresh PAG oil ISO 46, 500 ml

no

Bottle of fresh PAG oil ISO 100, 500 ml

no

Bottle of fresh POE oil SE 55, 500 ml

no

Bottle of fresh PAG oil ND 12, 100 ml

no

Dimensions (W x H x D, in mm)

560 x 1300 x 650

Weight (kg)

100
