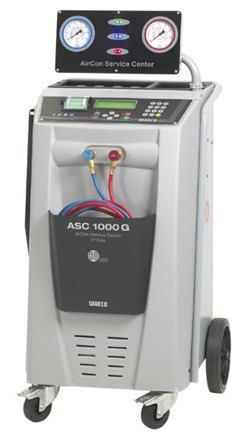

Waeco ASC1000G R134A Air Con Station

Extended Warranty Waeco ASC1000G R134A Air Conditioning Station
Only £2395.00 + VAT
P/No. : asc1000g
QTY :

Waeco ASC1000G R134A Air Conditioning Station

Fully automatic service unit for all A/C specialists. The ASC1000G has all it takes to perform standard service work on automotive air conditioners. The quick-start function comes in very handy in everyday workshop use. Simply enter the amount of refrigerant to be charged, make a total of three input instructions, and the unit will automatically do all the required functions:

  • Refrigerant recovery and recycling
  • Residual pressure measurement
  • Used oil drainage
  • Evacuation
  • Leak check
  • Charging of fresh oil and UV additive
  • Refrigerant charging with charging amount compensation of the service hoses.

All process steps are fully automatic and self-monitored by the system. Errors are indicated by acoustic and visual signals from the swivel-mount display unit. Software updates can simply be done with a USB stick.

Waeco ASC 1000 G R134A Air Conditioning Station

Features

  • Sturdy metal housing
  • Charging cylinder storage capacity: 10 kg, vacuum pump capacity: 4 cars/h
  • Patented feeding system for fresh oil and UV additive
  • Print-out of important service data, several print-outs possible
  • Fully automatic refrigerant recycling, oil and additive management
  • Automatic vacuum check
  • Automatic charging of leak detection additive
  • Integrated refrigerant charging and recovery amount management
  • Integrated charging amount database
  • Complies with SAE J 2099 and SAE J 2788
  • Personalised charging amount database
  • Operator guidance via large display and manometer
  • Swivel and tilt manometer panel (patented)
  • Heated charging cylinder for high-speed charging, heat-up also possible during the charging process
  • Special, 8-bearing weighing platform
  • Special air conditioner flush function
  • Large recessed tray for tools
  • 500 ml used oil container for longer change intervals
  • Also suitable for German-make hybrid vehicles
  • Suitable for Asian-make hybrid vehicles when optional flushing kit is installed
  • USB interface
  • Soft graphic display

Individual User Code

To prevent unauthorised use of WAECO A/C service units, up to 10 user names can be programmed in combination with individual PIN codes.

Personalised Charging Amount Database

ASC-series units give you the option to create a personalised charging amount database for 100 different vehicle

USB Interface

Via the USB port you can simply update the software of the service unit. Or export important data to a USB stick for further processing on a laptop or PC.

Technical Specification

Power Supply

220/240 V – 50/60 Hz *

Suitable for refrigerant

R 134a

Purity of recovered refrigerant according to SAE J 2099

yes

Refrigerant recovery rate in kg/h

30

Vacuum pump capacity

4 cars/h

Performance of the hermetic compressor in kW

0,32

Dry filter capacity in kg

150

Refrigerant recycling rate

min. 95 %

Can be used as diagnosis tool

no

Charging cylinder/useful capacity (kg)

11

Charging amount indicated by

Display

Refrigerant analysis

no

Recovery/recycling

automatic

Purging of non-condensable gases

automatic

Purging of used oil

automatic

Evacuation

automatic

Vacuum check

automatic

Nitrogen leak check

no

Injection of leak detection additive

automatic

Injection of oil into the A/C system

automatic

Refrigerant charging

automatic

High/low pressure indicated by

Manometer

Vacuum indicated on

Display

Total process control via display

yes

Option to set the evacuation time

yes

Protocol print-out with printer

yes

USB connection for software- and database updates

yes

Printer

yes

Service hoses (SAE standard), 3 m

yes

Service hoses (SAE standard), 8 m

no

Valve adapter for WAECO refrigerant bottles

yes

Operating instructions

yes

Adapter for 500 ml fresh oil and UV tracer dye bottle

yes

Used oil container (500 ml)

yes

Hermetically closed used oil container

no

Heated refrigerant tank / fluid pump (F)

yes / no

Dust cover

no

Goggles / safety gloves

yes

Test bottles UV additive for approx. 10 applications

yes

Bottle of fresh PAG oil ISO 46, 500 ml

yes

Bottle of fresh PAG oil ISO 100, 500 ml

yes

Bottle of fresh POE oil SE 55, 500 ml

no

Bottle of fresh PAG oil ND 12, 100 ml

no

Dimensions (W x H x D, in mm)

560 x 1300 x 650

Weight (kg)

95
